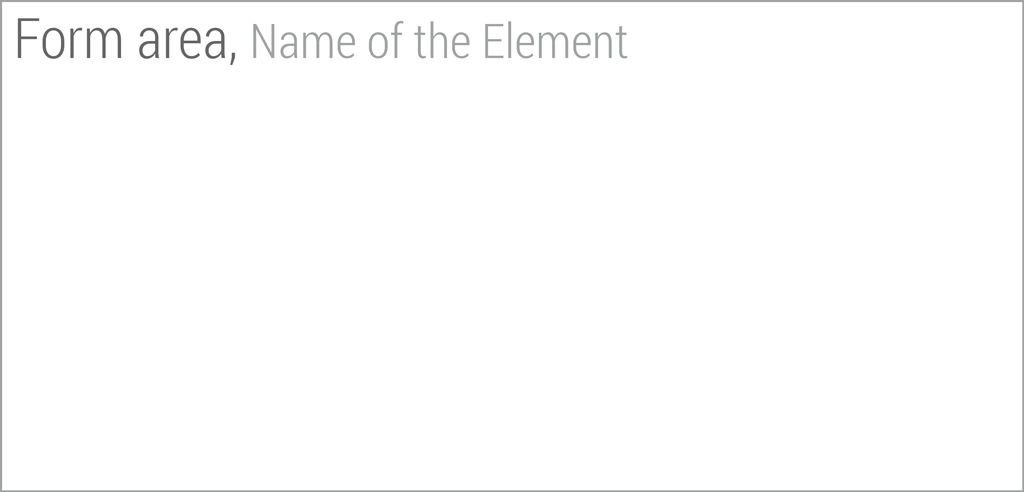

Element: Form Area

The "Form area" element is the area where all form fields are stored with the contentDock® Wireframer App. Only the form elements that are stored within the "Form area" will be used, when the user sends the form. The "Form Area" element can be used multiple times on each page.
Please note: Form elements that are outside the "Form-Area" have no functions.
Sample App
You can test this element with sample styles directly in the public area of the contentDock® Viewer App. You can also load these sample styles from the Template Library into your user account and import them into your app project.
Styles
-
BackgroundColorDefines the color of the element background. Possible values are hexadecimal and of RGBA color values.
The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.
The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.Preset system value
This value is used if no style is defined for this element.
rgba(255,255,255,0)
ImageDefines the background image for the element. The image is displayed scaled in the element. -
BorderPositionSpecify the position of the border. The border always encloses the element, but you can choose in which direction the border will be drawn.
Possible values are:
Inside: The border is drawn inside.
Outside: The border is drawn outside.Preset system value
This value is used if no style is defined for this element.
inner
ColorDefines the color of the element border. Possible values are hexadecimal and of RGBA color values.
The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.
The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.Preset system value
This value is used if no style is defined for this element.
rgba(255,255,255,0)
HeightDefines the thickness of the border in pixels surrounding the element. The value is set individually in an input field.
Please note that only integers are entered. A "px" need not be captured.Preset system value
This value is used if no style is defined for this element.
0
RadiusDefines the radius of the border in pixels used in the element corners. The value is set individually in an input field.
Please note that only integers are entered. A "px" need not be captured.Preset system value
This value is used if no style is defined for this element.
0
Show the radius top leftPreset system value
This value is used if no style is defined for this element.
1
Show the radius top rightPreset system value
This value is used if no style is defined for this element.
1
Show the radius bottom leftPreset system value
This value is used if no style is defined for this element.
1
Show the border radius bottom rightPreset system value
This value is used if no style is defined for this element.
1
-
ShadowShadow color
Preset system value
This value is used if no style is defined for this element.
#000000
Shadow opacityPreset system value
This value is used if no style is defined for this element.
0
Radius of the shadowPreset system value
This value is used if no style is defined for this element.
0
Offset height of the shadowPreset system value
This value is used if no style is defined for this element.
0
Offset width of the shadowPreset system value
This value is used if no style is defined for this element.
0
