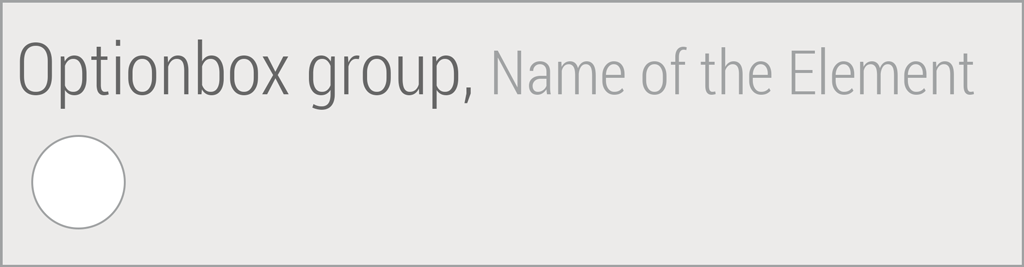

Element: Form Optionbox

With the "Optionbox" element you can use a group of selectable fields in your form. Only one can be selected from this group of fields.

Please note that this element is always stored in a "Form-Area" element.

Sample App

You can test this element with sample styles directly in the public area of the contentDock® Viewer App. You can also load these sample styles from the Template Library into your user account and import them into your app project.

Styles

  • Background
    Color
    Contentdock color help
    Defines the color of the element background. Possible values are hexadecimal and of RGBA color values.

    The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.

    The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.

    Preset system value

    This value is used if no style is defined for this element.

    rgba(255,255,255,0)

    Contentdock background image help
    Defines the background image for the element. The image is displayed scaled in the element.
  • Border
    Height
    Contentdock form radio button border height help
    Defines the thickness of the border in pixels surrounding the element. The value is set individually in an input field.

    Please note that only integers are entered. A "px" need not be captured.

    Preset system value

    This value is used if no style is defined for this element.

    0

    Radius
    Contentdock form radio button border radius help
    Defines the radius of the border in pixels used in the element corners. The value is set individually in an input field.

    Please note that only integers are entered. A "px" need not be captured.

    Preset system value

    This value is used if no style is defined for this element.

    0

    Color
    Contentdock color help
    Defines the color of the element border. Possible values are hexadecimal and of RGBA color values.

    The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.

    The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.

    Preset system value

    This value is used if no style is defined for this element.

    rgba(255,255,255,0)

    Position
    Contentdock form radio button border position help
    Specify the position of the border. The border always encloses the element, but you can choose in which direction the border will be drawn.

    Possible values are:

    Inside: The border is drawn inside.

    Outside: The border is drawn outside.

    Preset system value

    This value is used if no style is defined for this element.

    inner

  • Inner Space
    At the top
    Contentdock form optionbox item distance top first item help
    Defines the distance between the top border of the radio buttons area and the first radio button item.

    Preset system value

    This value is used if no style is defined for this element.

    0

    At the bottom
    Contentdock form radio button item distance help
    Defines the distance between the radio buttons.

    Preset system value

    This value is used if no style is defined for this element.

    0

    To the left
    Contentdock form optionbox item distance left help
    Defines the inner distance between the left border of the radio buttons area and the radio button items.

    Preset system value

    This value is used if no style is defined for this element.

    0

    To the right
    Contentdock form optionbox item distance right help
    Defines the inner distance between the right border of the radio buttons area and the Text of the radio button items.

    Preset system value

    This value is used if no style is defined for this element.

    0

  • Title Font
    Name of the font
    Contentdock font family help
    In contentDock® there are various fonts from fonts.google.com pre installed. You can also load your own fonts in contentDock® as TTF (TrueType Font) or OTF (OpenType Font).

    Preset system value

    This value is used if no style is defined for this element.

    Open Sans Light

    Font size
    Contentdock font size help
    Defines the size of the text in pixels. The value is selected from the dropdown or can be set individually.

    Preset system value

    This value is used if no style is defined for this element.

    16

    Color
    Contentdock color help
    Defines the color of the text. Possible values are hexadecimal and of RGBA color values.

    The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.

    The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.

    Preset system value

    This value is used if no style is defined for this element.

    #000000

  • Element
    Image normal
    Contentdock form radio button image help
    Image for the radio button, if not selected.

    Preset system value

    This value is used if no style is defined for this element.

    Xopqhnsw

    Image selected
    Contentdock form radio button image help
    Image for the selected radio button.

    Preset system value

    This value is used if no style is defined for this element.

    Zguvowle

  • Size
    Width
    Contentdock form optionbox item width help
    Defines the width of a radio button.

    Preset system value

    This value is used if no style is defined for this element.

    50

    Hight
    Contentdock form optionbox item height help
    Defines the height of a radio button element.

    Preset system value

    This value is used if no style is defined for this element.

    50
