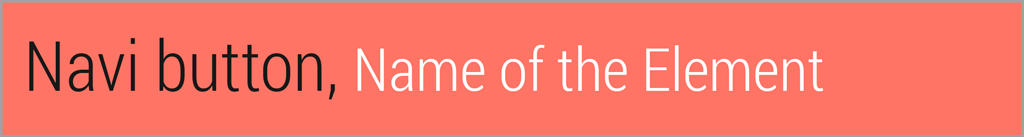

Element: Navigation Button

With the element "Navigation Button" you can link to other pages, within their contentApp.

Sample App

You can test this element with sample styles directly in the public area of the contentDock® Viewer App. You can also load these sample styles from the Template Library into your user account and import them into your app project.

Styles

  • Background
    Color
    Contentdock color help
    Defines the color of the element background. Possible values are hexadecimal and of RGBA color values.

    The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.

    The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.

    Preset system value

    This value is used if no style is defined for this element.

    #53af02

  • Border
    Height
    Contentdock button border height help
    Defines the thickness of the border in pixels surrounding the element. The value is set individually in an input field.

    Please note that only integers are entered. A "px" need not be captured.

    Preset system value

    This value is used if no style is defined for this element.

    0

    Radius
    Contentdock button border radius help
    Defines the radius of the border in pixels used in the element corners. The value is set individually in an input field.

    Please note that only integers are entered. A "px" need not be captured.

    Preset system value

    This value is used if no style is defined for this element.

    0

    Color
    Contentdock color help
    Defines the color of the element border. Possible values are hexadecimal and of RGBA color values.

    The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.

    The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.

    Preset system value

    This value is used if no style is defined for this element.

    rgba(255,255,255,0)

    Position
    Contentdock button border position help
    Specify the position of the border. The border always encloses the element, but you can choose in which direction the border will be drawn.

    Possible values are:

    Inside: The border is drawn inside.

    Outside: The border is drawn outside.

    Preset system value

    This value is used if no style is defined for this element.

    inner

  • Inner Space
    At the top
    Contentdock button padding top help
    The text in the element is centered vertically and horizontally by default. You can change the space between the text and the top border of the element in this style.

    Preset system value

    This value is used if no style is defined for this element.

    10

    At the bottom
    Contentdock button padding bottom help
    The text in the element is centered vertically and horizontally by default. You can change the space between the text and the bottom border of the element in this style.

    Preset system value

    This value is used if no style is defined for this element.

    10

    To the left
    Contentdock button padding left help
    The text in the element is centered vertically and horizontally by default. You can change the space between the text and the left border of the element in this style.

    Preset system value

    This value is used if no style is defined for this element.

    10

    To the right
    Contentdock button padding right help
    The text in the element is centered vertically and horizontally by default. You can change the space between the text and the right border of the element in this style.

    Preset system value

    This value is used if no style is defined for this element.

    10

  • Title Font
    Name of the font
    Contentdock font family help
    In contentDock® there are various fonts from fonts.google.com pre installed. You can also load your own fonts in contentDock® as TTF (TrueType Font) or OTF (OpenType Font).

    Preset system value

    This value is used if no style is defined for this element.

    Open Sans Light

    Font size
    Contentdock font size help
    Defines the size of the text in pixels. The value is selected from the dropdown or can be set individually.

    Preset system value

    This value is used if no style is defined for this element.

    16

    Color
    Contentdock color help
    Defines the color of the text. Possible values are hexadecimal and of RGBA color values.

    The hexadecimal color system uses three sequently hexadecimal numbers, each representing one color of the RGB color space. Example: #ffffff for the color white.

    The RGBA color system has been extended by the RGB system with an alpha value for transparencies. Example: rgba (255,255,255,0.5) for the color white with an alpha value of 0.5.

    Preset system value

    This value is used if no style is defined for this element.

    #ffffff

  • Button behavior
    Normal image
    Contentdock background image help
    This defines the image for the normal state of the button.
    Down image
    Contentdock background image help
    This defines the image for the touched / pressed state of the button.
    Color for the pressed state
    Contentdock color help
    This defines the background color for the touched / pressed state of the button

    Attention: This style has no effect, when a background image is defined for the touched / pressed state.

    Preset system value

    This value is used if no style is defined for this element.

    #000000

    Show active/down state if the page ID is equal with the currently displayed page
    If this style is activated, the image for the pressed state is displayed if the currently displayed page is the same as the linked page.

    Preset system value

    This value is used if no style is defined for this element.

    1

  • Title for active page
    Font, if the page ID is equal with the currently displayed page
    Font size, if the page ID is equal with the currently displayed page
    Color, if the page ID is equal with the currently displayed page
